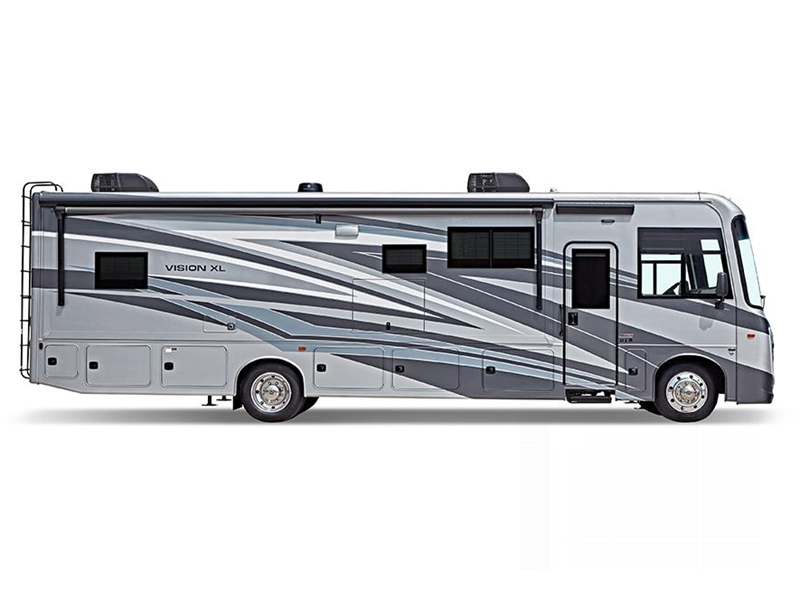

Entegra Coach Vision XL Motor Home Class A RVs For Sale

Previous
Next
1 of 20

The Entegra Coach Vision XL Class A gas motorhome is jam-packed with surprising and innovative features, plus new interior decor and exterior graphics! The E-Z Drive Elite package includes a computer- balanced driveshaft, heavy-duty front and rear stabilizer bars, and SACHS shocks for a superior ride and handling. With a Ford F53 chassis, TuffShell™ vacuum-bond laminated floors and sidewalls, and a one-piece, seamless, crowned fiberglass roof, you can be sure to take this motorhome on every adventure for years to come!



You will be amazed at the stunning interiors and superior craftsmanship that has been put into each and every model. From the LED-lit hardwood fascia, the Entegra-exclusive easy operation legless dinette table, and 6-way power and swivel driver/passenger seats to the exterior entertainment center and the inside Sony® infotainment center with Apple CarPlay® and Android Auto™.



Hit the road today with an Entegra Coach Vision XL Class A gas motorhome!

  • Vision XL 34G

    Vision XL 34G Floorplan Image

    Take a Virtual Tour

    Entegra Coach Vision XL Class A gas motorhome 34G highlights: Theater Sofa ... more about Vision XL 34G

    Specifications

    Sleeps 5
    Slides 2
    Length 36 ft 6 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Crossville, Modern Farmhouse
    Exterior Color Standard Graphics, Basanite, Marble, Sapphire, Flint
    Hitch Weight 5000 lbs
    Gross Weight 22000 lbs
    Fresh Water Capacity 72 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 50 gals
    Tire Size 235/80R22.5
    Furnace BTU 35000 btu
    Generator 5,500-watt Onan Marquis Gold Genset
    Fuel Type Gas
    Engine 7.3L V8
    Chassis Ford F53
    Horsepower 350 hp
    Fuel Capacity 80 gals
    Wheelbase 238 in
    Available Beds King
    Torque 468 ft-lb
    Refrigerator Type Residential w/Ice and Water In Door
    Refrigerator Size 21 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    Axle Weight Front 8000 lbs
    Axle Weight Rear 15000 lbs
    LP Tank Capacity 16.5 gals
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric
    AC BTU 28500 btu
    TV Info LR 50" LED on Lift, BR 32" LED, Ext. LED
    Awning Info 23' Electric with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 26000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Vision XL 34B

    Vision XL 34B Floorplan Image

    Take a Virtual Tour

    Entegra Coach Vision XL Class A gas motorhome 34B highlights: Fireplace Rear ... more about Vision XL 34B

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 2
    Length 36 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Crossville, Modern Farmhouse
    Exterior Color Standard Graphics, Basanite, Marble, Sapphire, Flint
    Hitch Weight 5000 lbs
    Gross Weight 22000 lbs
    Fresh Water Capacity 72 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 40 gals
    Tire Size 235/80R22.5
    Furnace BTU 35000 btu
    Generator 5,500-watt Onan Marquis Gold Genset
    Fuel Type Gas
    Engine 7.3L V8
    Chassis Ford F53
    Horsepower 350 hp
    Fuel Capacity 80 gals
    Wheelbase 228 in
    Available Beds King
    Torque 468 ft-lb
    Refrigerator Type Residential w/Ice and Water in Door
    Refrigerator Size 21 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    Axle Weight Front 8000 lbs
    Axle Weight Rear 15000 lbs
    LP Tank Capacity 16.5 gals
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric
    AC BTU 28500 btu
    TV Info LR 39" LED, BR 32" LED, Ext. LED
    Awning Info 17' Electric with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 26000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Vision XL 36A

    Vision XL 36A Floorplan Image

    Entegra Coach Vision XL Class A gas motorhome 36A highlights: Two Full Bathrooms ... more about Vision XL 36A

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 3
    Length 38 ft 10 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Crossville, Modern Farmhouse
    Exterior Color Standard Graphics, Basanite, Marble, Sapphire, Flint
    Hitch Weight 5000 lbs
    Gross Weight 24000 lbs
    Fresh Water Capacity 72 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 102 gals
    Tire Size 255/80R22.5
    Furnace BTU 60000 btu
    Generator 5,500-watt Onan Marquis Gold Genset
    Fuel Type Gas
    Engine 7.3L V8
    Chassis Ford F53
    Horsepower 350 hp
    Fuel Capacity 80 gals
    Wheelbase 252 in
    Number Of Bunks 2
    Available Beds King
    Torque 468 ft-lb
    Refrigerator Type Residential w/Ice and Water In Door
    Refrigerator Size 21 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    Axle Weight Front 9000 lbs
    Axle Weight Rear 15500 lbs
    LP Tank Capacity 16.5 gals
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric
    AC BTU 28500 btu
    TV Info LR 39" LED, BR 32" LED, Bunk TVs, Ext. LED
    Awning Info 12' Electric with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 30000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

Vision XL Features:

Standard Feature (2021)



Chassis

  • E-Z Drive Elite Package
    • Computer-balanced driveshaft, variable rate front and rear jounce bumpers, heavy-duty front and rear stabilizer bars, SACHS shocks, 22.5" Michelin tires
  • 210-amp alternator
  • Front and rear disc, 4-wheel anti-lock brakes
  • Ford® F53 chassis
  • 12V chassis battery
  • 7.3L V-8 350 HP engine with 468 ft.-lb. torque
  • 80-gal. fuel tank
  • 5,000-lb. rear hitch receiver with dual connector with 7-pin plug
  • Automatic hydraulic leveling jacks
  • G-rated highway tires- 235/80R22.5 (34B, 34G), 255/80R22.5 (36A)
  • 6-speed automatic TorqShift® transmission with overdrive and tow haul mode

Construction

  • Fiberglass exterior walls with vinyl graphics
  • TuffShell™ vacuum-bond laminated floor
  • One-piece, seamless, fiberglass front and rear caps
  • Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
  • One-piece, seamless, crowned fiberglass roof
  • TuffShell™ vacuum-bond laminated sidewalls

Heat, AC, Water & Power

  • 15,000-BTU A/C unit with heat pump and second 13,500-BTU A/C unit
  • (2) 6V AGM (220Ah) house batteries on slideout tray
  • 50-amp electrical service
  • Onan® Marquis Gold Genset 5,500-watt generator with auto-gen start
  • Auto-ignition ducted furnace-35,000 BTU (34B, 34G), (2) 30,000 BTU (36A)
  • Heated holding tanks (12V pads)
  • 1,000-watt inverter
  • 16.5-gal. propane tank (56 lb.) with LP quick-connect hookup
  • Water filtration system
  • 10-gal. gas/electric water heater
  • 12V demand water pump
  • Winterization drain system

Exterior

  • Lockable pass-through storage compartments with slam latches
  • Entrance door with industry’s largest travel-view window
  • Electric-powered entrance step
  • Exterior entertainment center with outside speakers, LED TV mounted on swivel bracket and single-disc DVD/FM radio
  • Flush-mount LED marker lights
  • Outside shower
  • Electric patio awning with LED lights
  • Prep for satellite dish
  • Slideout cover awnings
  • Solar prep
  • Third brake light
  • Exterior utility center
  • Frameless windows

Cockpit

  • Removable driver/passenger cockpit table
  • Backup and side-view cameras
  • Soft-touch, vinyl-wrapped automotive dash
  • 6-way power and swivel driver and passenger seats
  • A/C and cruise control
  • Sony® infotainment center with Apple CarPlay® and Android Auto™
  • Tilt steering wheel
  • Power front privacy shade with manual side privacy shades
  • 120-in. panoramic windshield

Interior

  • Digital antenna with signal booster
  • Bunks with industry-exclusive 300-lb. capacity each (36A)
  • Hardwood cabinet doors and drawers with ball-bearing drawer guides
  • Cable TV hookup with RG-6 coax and video selector switch
  • 84-in. interior ceiling height with padded vinyl ceiling
  • Blu-Ray™ player in living area
  • Furrion® electric fireplace (34B, 34G only)
  • LED-lit hardwood fascia
  • High-intensity recessed LED ceiling lights
  • LED living room TV
  • Day/night roller shades

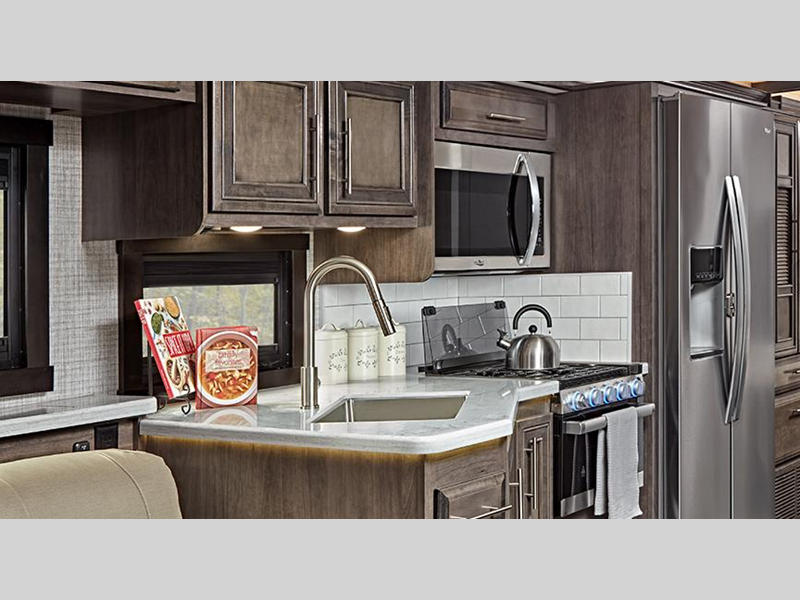

Kitchen

  • Furrion® all-in-one cooktop and oven

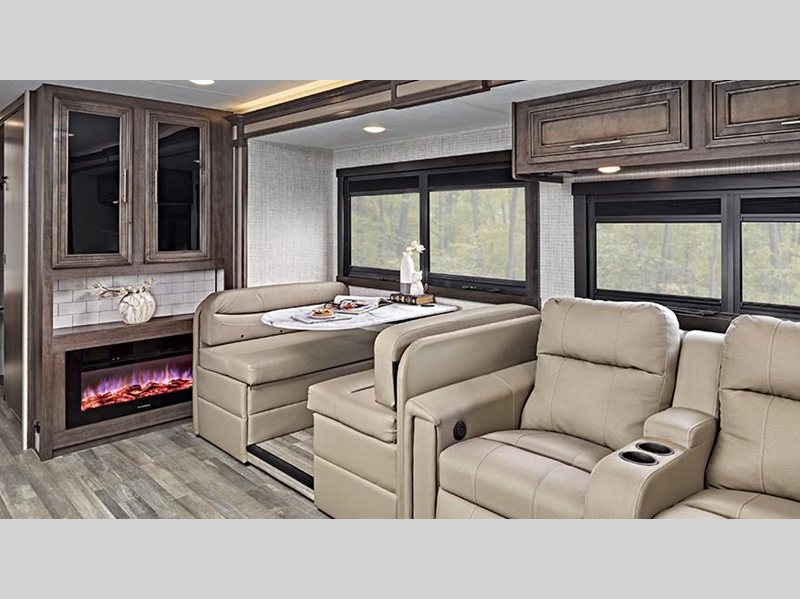

  • Entegra-exclusive easy operation legless dinette table
  • LED-lit solid-surface kitchen countertops
  • Decorative kitchen backsplash
  • Convection microwave oven
  • 21-cu.ft. residential refrigerator with ice and water in door
  • Integrated stainless-steel sink and sink covers
  • Powered roof vent in kitchen with wall switch

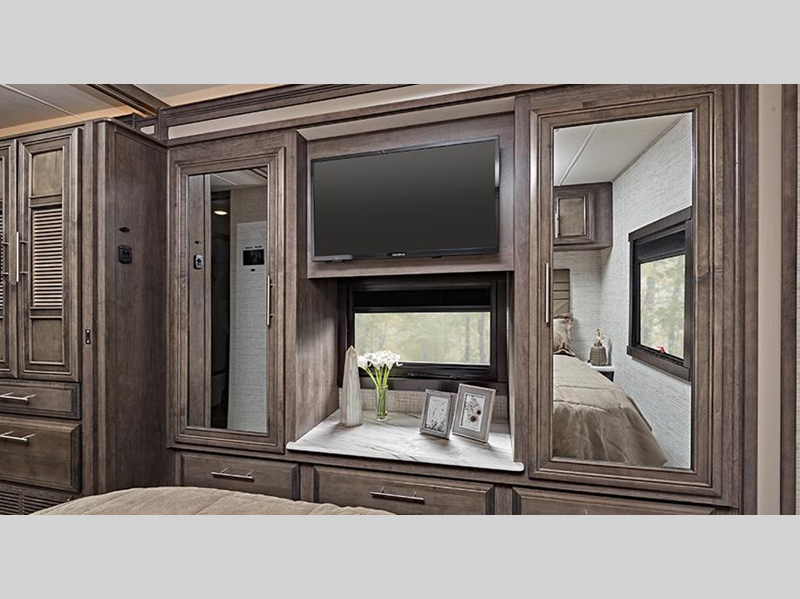

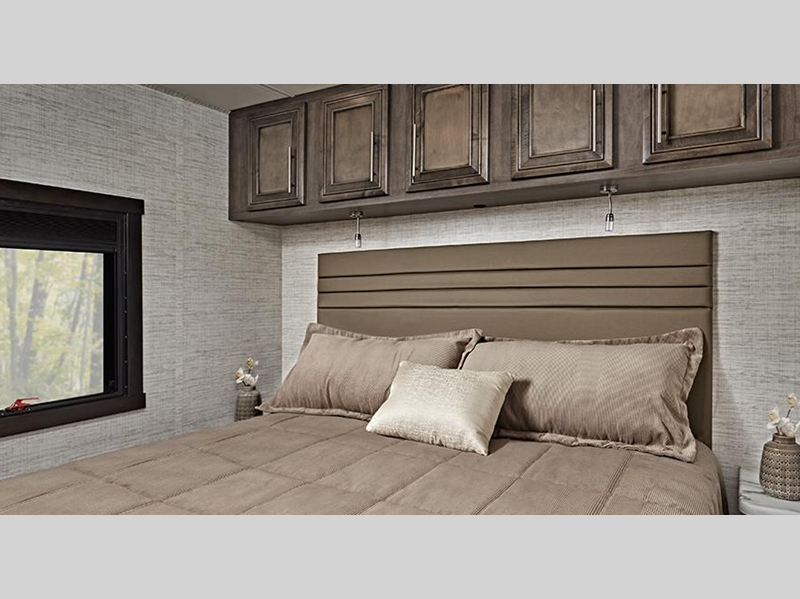

Bedroom

  • Walk-around King-sized bed with bedspread
  • Large wardrobes
  • Solid-surface nightstands
  • LED TV in bedroom

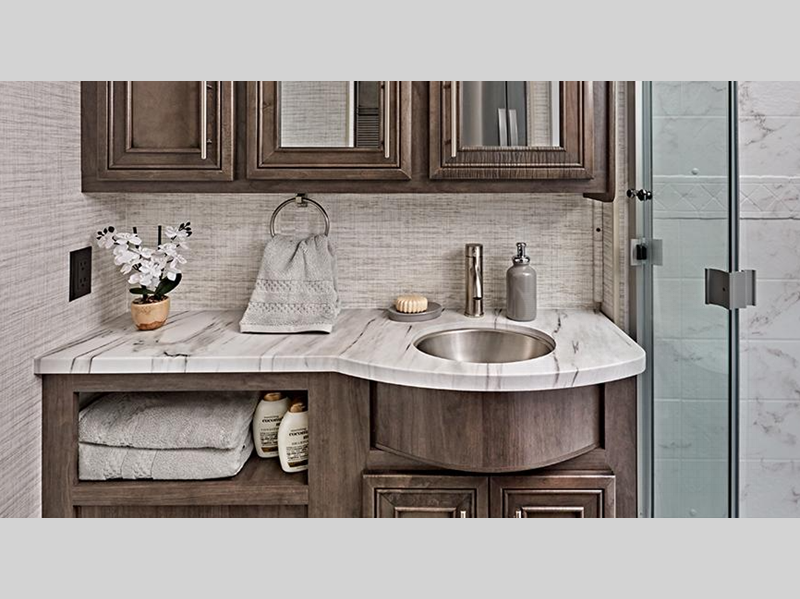

Bathroom

  • Shower with decorative surround, skylight and light
  • Glass shower door
  • Powered roof vent in bathroom with wall switch
  • Stainless-steel bathroom sink
  • Porcelain toilet with foot flush

Safety

  • Carbon monoxide detector
  • Porch light
  • 2-point lap safety belts in all designated seating locations
  • Smoke alarm

Options

  • Canadian standards
  • Customer Value Package (Mandatory)

5.5 KW generator, 50 amp electrical service, 1,200 watt inverter, Automatic hydraulic leveling jacks, Backup and sideview camera, Driver/passenger cockpit table, Electric awning with LED lights, Exterior entertainment center with LED TV and single disc DVD/FM radio, Frameless windows, Infotainment system, EZ Drive Elite package, LED TV in living room, Roller shades, Slideout cover awnings, Solid-surface kitchen countertops

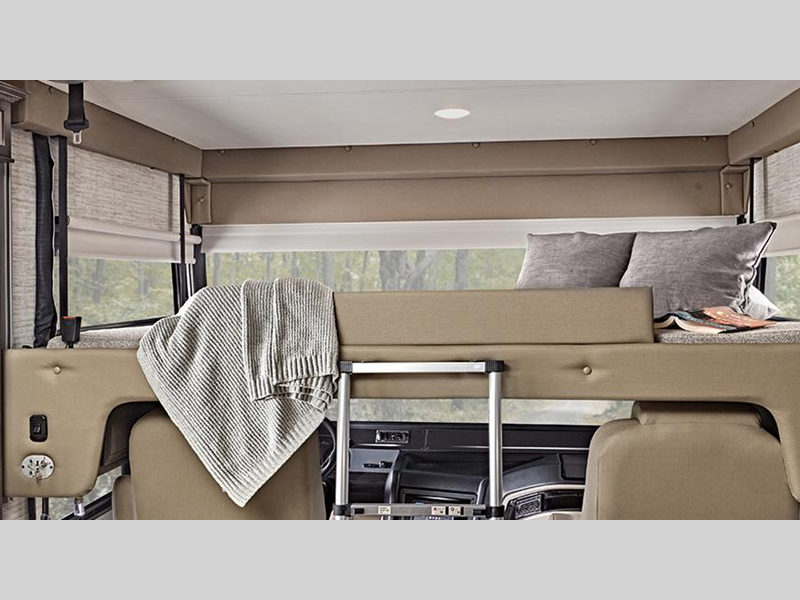

  • Drop-down overhead bunk in cab area with 750-lb. capacity
  • 93-in. straight reclining sofa (35B)
  • 12-cu.ft. gas/electric refrigerator

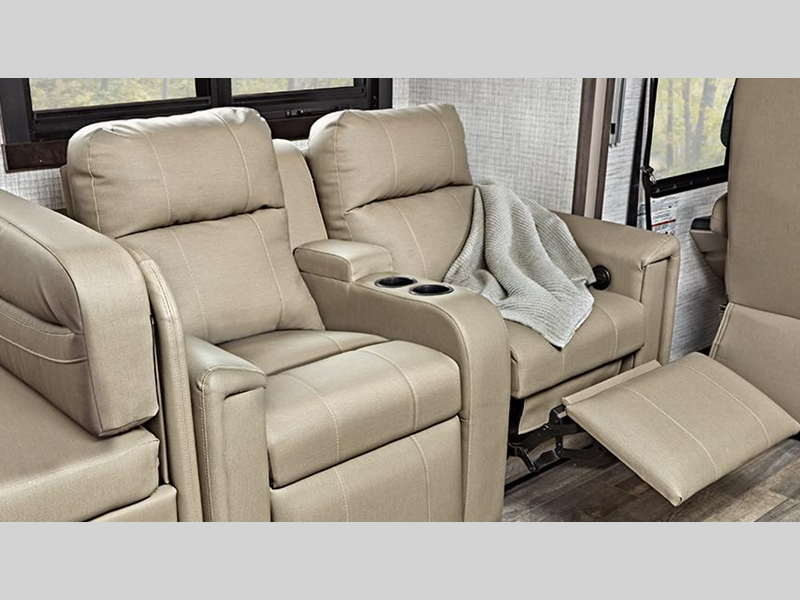

  • Power theater seating (N/A 34B) (STD 34G)
  • Combination washer/dryer

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions.  See us for more details.
