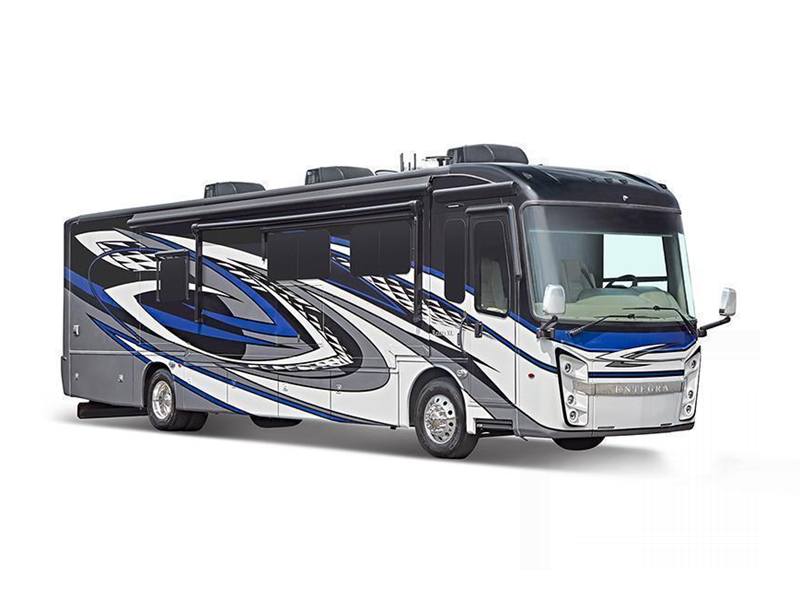

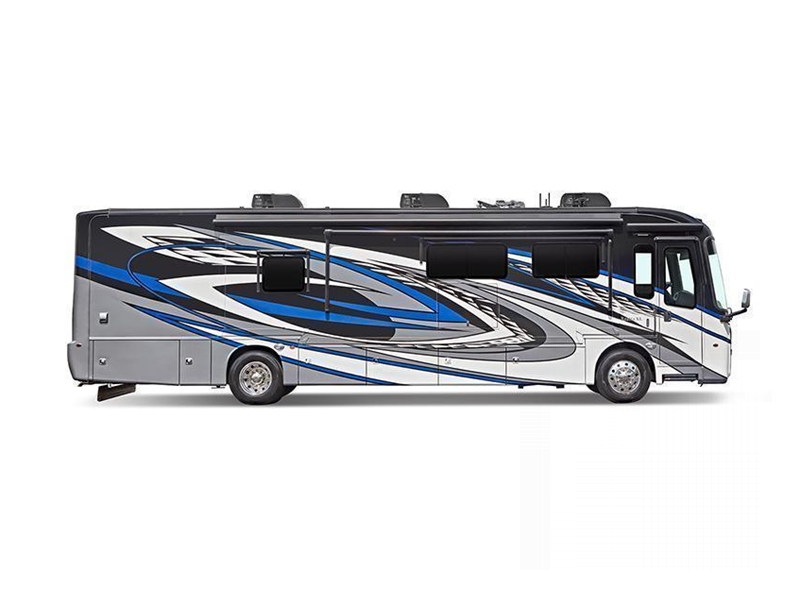

Entegra Coach Reatta XL Motor Home Class A - Diesel RVs For Sale
Check out the uncompromising luxury and refined handling that the Entegra Coach Reatta XL Class A diesel motorhome delivers! The exceptional drivability of these compact coaches and the elegance that they exude allow you to experience the open road without missing a beat.
A Cummins L9 turbocharged engine is what powers the beautiful Reatta XL, and the X-Bridge frames, the steel-reinforced front cap, and the one-piece fiberglass roof are what ensure that these coaches will be strong enough to get you to your destinations time and time again. You will also appreciate the high-class interiors for their luxurious additions, like the Insignia 50" LED TV and sound bar, the Whirlpool residential refrigerator, the king-size pillowtop mattress on a tilt bed, and the hand-laid polished porcelain tile flooring.
For peace of mind and uncompromising luxury as you travel, nothing but the Reatta XL Class A diesel motorhome from Entegra Coach will do!
-
Reatta XL 39T2
Entegra Coach Reatta XL Class A diesel motorhome 39T2 highlights: Bath and a ... more about Reatta XL 39T2
Specifications
Sleeps 7 Slides 3 Length 39 ft 11 in Ext Width 8 ft 5 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Eggshell, Pinecone, Onyx Exterior Color Ironstone, Jasper, Sunstone Hitch Weight 10000 lbs Gross Weight 36320 lbs Fresh Water Capacity 100 gals Grey Water Capacity 62 gals Black Water Capacity 41 gals Tire Size 275/80R 22.5" Furnace BTU 40000 btu Generator Onan 10,000 Watt Diesel Fuel Type Diesel Engine Cummins L9 Turbocharged Chassis Spartan K2 Raised Rail Horsepower 380 hp Fuel Capacity 100 gals Wheelbase 255 in Available Beds King Bed Head Lift Torque 1150 ft-lb Refrigerator Type Residential with Ice Maker and Water Dispenser Convection Cooking Yes Cooktop Burners 2 Shower Size 30" x 40" Number of Awnings 1 Axle Weight Front 14320 lbs Axle Weight Rear 22000 lbs Water Heater Type Aqua Hot 250 Hydronic AC BTU 45000 btu TV Info LR 50" LED TV, BR 32" LED TV, Exterior 39" LED TV Awning Info Power with LED Lights Washer/Dryer Available Yes Gross Combined Weight 46320 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Reatta XL 37K
Entegra Coach Reatta XL Class A diesel motorhome 37K highlights: Hutch Fireplace ... more about Reatta XL 37K
Have a question about this floorplan? Contact Us
Specifications
Sleeps 5 Slides 4 Length 37 ft 10 in Ext Width 8 ft 5 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Eggshell, Pincone, Onyx Exterior Color Ironstone, Jasper, Sunstone Hitch Weight 10000 lbs Gross Weight 36320 lbs Fresh Water Capacity 100 gals Grey Water Capacity 62 gals Black Water Capacity 41 gals Tire Size 275/80R 22.5" Furnace BTU 40000 btu Generator Onan 10,000 Watt Diesel Fuel Type Diesel Engine Cummins L9 Turbocharged Chassis Spartan K2 Raised Rail Horsepower 380 hp Fuel Capacity 100 gals Wheelbase 230 in Available Beds King Bed Head Lift Torque 1150 ft-lb Refrigerator Type Residential with Ice Maker and Water Dispenser Convection Cooking Yes Cooktop Burners 2 Shower Size 36" x 36" Number of Awnings 1 Axle Weight Front 14320 lbs Axle Weight Rear 22000 lbs Water Heater Type Aqua Hot 250 Hydronic AC BTU 30000 btu TV Info LR 50" LED TV, Cab 32" LED TV, BR 32" LED TV, Exterior 39" LED TV Awning Info Power with LED Lights Washer/Dryer Available Yes Gross Combined Weight 46320 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Reatta XL 39BH
Entegra Coach Reatta XL Class A diesel motorhome 39BH highlights: Power Bunk ... more about Reatta XL 39BH
Have a question about this floorplan? Contact Us
Specifications
Sleeps 7 Slides 3 Length 39 ft 11 in Ext Width 8 ft 5 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Eggshell, Pinecone, Onyx Exterior Color Ironstone, Jasper, Sunstone Hitch Weight 10000 lbs Gross Weight 36320 lbs Fresh Water Capacity 100 gals Grey Water Capacity 62 gals Black Water Capacity 41 gals Tire Size 275/80R 22.5" Furnace BTU 40000 btu Generator Onan 10,000 Watt Diesel Fuel Type Diesel Engine Cummins L9 Turbocharged Chassis Spartan K2 Raised Rail Horsepower 380 hp Fuel Capacity 100 gals Wheelbase 255 in Number Of Bunks 2 Available Beds King Bed Head Lift Torque 1150 ft-lb Refrigerator Type Residential with Ice Maker and Water Dispenser Convection Cooking Yes Cooktop Burners 2 Shower Size 30" x 40" Number of Awnings 1 Axle Weight Front 14320 lbs Axle Weight Rear 22000 lbs Water Heater Type Aqua Hot 250 Hydronic AC BTU 45000 btu TV Info LR 50" LED TV, BR 32" LED TV, Exterior 39" LED TV Awning Info Power with LED Lights Washer/Dryer Available Yes Gross Combined Weight 46320 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Reatta XL 40Q2
Entegra Coach Reatta XL Class A diesel motorhome 40Q2 highlights: Hide-A-Bed ... more about Reatta XL 40Q2
Have a question about this floorplan? Contact Us
Specifications
Sleeps 7 Slides 3 Length 40 ft 11 in Ext Width 8 ft 5 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Eggshell, Pincone, Onyx Exterior Color Ironstone, Jasper, Sunstone Hitch Weight 10000 lbs Gross Weight 36320 lbs Fresh Water Capacity 100 gals Grey Water Capacity 62 gals Black Water Capacity 41 gals Tire Size 275/80R 22.5" Furnace BTU 40000 btu Generator Onan 10,000 Watt Diesel Fuel Type Diesel Engine Cummins L9 Turbocharged Chassis Spartan K2 Raised Rail Horsepower 380 hp Fuel Capacity 100 gals Wheelbase 267 in Available Beds King Bed Head Lift Torque 1150 ft-lb Refrigerator Type Residential with Ice Maker and Water Dispenser Convection Cooking Yes Cooktop Burners 2 Shower Size 40" x 30" Number of Awnings 1 Axle Weight Front 14320 lbs Axle Weight Rear 22000 lbs Water Heater Type Aqua Hot 250 Hydronic AC BTU 45000 btu TV Info LR 50" LED TV, BR 32" LED TV, Exterior 39" LED TV Awning Info Power with LED Lights Washer/Dryer Available Yes Gross Combined Weight 46320 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
Take a Virtual Tour
Reatta XL Features:
Standard Features (2021)
Chassis
- Remote air connection
- 170 amp alternator
- ABS brakes on front and rear
- Spartan® K2 raised-rail chassis
- (2) 12V chassis batteries
- 10 gal. DEF tank
- Cummins® L9 turbocharged 380 HP engine 1,150 lb. ft. torque at 1,400 RPM
- 1,000 watt engine block heater
- Variable geometry turbo (VGT) engine brake
- Front axle 14,320 lb. rating
- Independent front air suspension (IFS)
- 100 gal. fuel tank
- 10,000 lb. hitch with 7/4-pin plug
- Equalizer hydraulic automatic coach leveling
- Rear-mounted radiator
- Rear axle 22,000 lb. rating
- 4.88 rear axle ratio
- Bilstein® 46mm shocks
- Michelin® 275/80R 22.5” tires
- Tire pressure monitoring system (TPMS) with temperature monitoring
- Spartan® Safehaul tow vehicle air brake system
- Allison® 3,000 MH 6-speed transmission
- 55 degree turning radius
Construction
- Vacuum-bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation, 3/8" Structurewood® and 1/4" plywood
- X-Bridge™ bracing welded into chassis frame
- Insulated front and rear caps (R-24) with steel-reinforced front cap and windshield frame
- One-piece fiberglass with 3/8" plywood decking, 4" arched aluminum trusses, insulation and reflective Flexfoil® (R-24)
- Electric-powered slideout rooms
- Vacuum-bonded, high-gloss gelcoat with R-8 bead-foam insulation
Heat, AC, Water & Power
- (3) 15,000 BTU A/C units with heat pumps [(2)15,000 BTU units with heat pumps on 37K]
- (2) L16 AGM batteries (6V/390 amp hrs. ea.)
- Black holding tank sprayer
- Sani-Con® Macerator holding tank dump system with manual gate valves and manual backup
- 50 amp power cord on electric powered reel
- Onan® 10,000 watt diesel generator, with automatic start, on slide-out tray

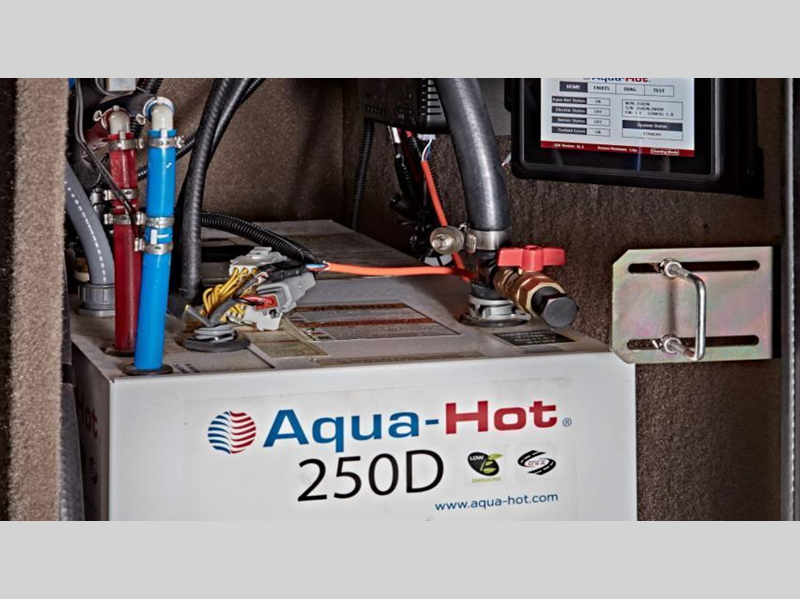

- Aqua-Hot® 250D hydronic water and heating system
- Electric radiant floor heating system
- Heated basement storage
- 2,000 watt pure sine wave inverter with 100 amp battery charger
- Surge protector transfer switch
- City and tank water filtration system
- Winterizing drain system
Exterior
- Slideout basement storage tray
- Daytime running lights
- Power entrance door awning with LED lights
- Removable screen on entry door
- Diamond Shield™ front protective film mask
- Exterior 39” LED TV on adjustable TV bracket
- Halogen high/low beam headlights and fog lights
- Grab handle with keypad system for keyless entry
- LED marker lights, turn lights, license plate light, accent lights, & docking lights
- Heated, remote control, side-view mirrors with integrated cameras
- Sikkens custom full body paint
- Power patio awning with LED lights
- Full-width rear mudflap, with chrome “Entegra” nameplate
- Winegard® TRAV'LER satellite dish DIRECTV®- standard with USA option
- Winegard® TRAV'LER satellite dish Shaw TV- standard with CSA option
- Slideout awnings
- Solar power prep
- Exterior utility center
- LED third brake light
- Winegard® Rayzar Z1 TV antenna
- Frameless, dual-pane, tinted, safety-glass windows
- Window awnings
- Winegard® WIFI extender with 4G/LTE

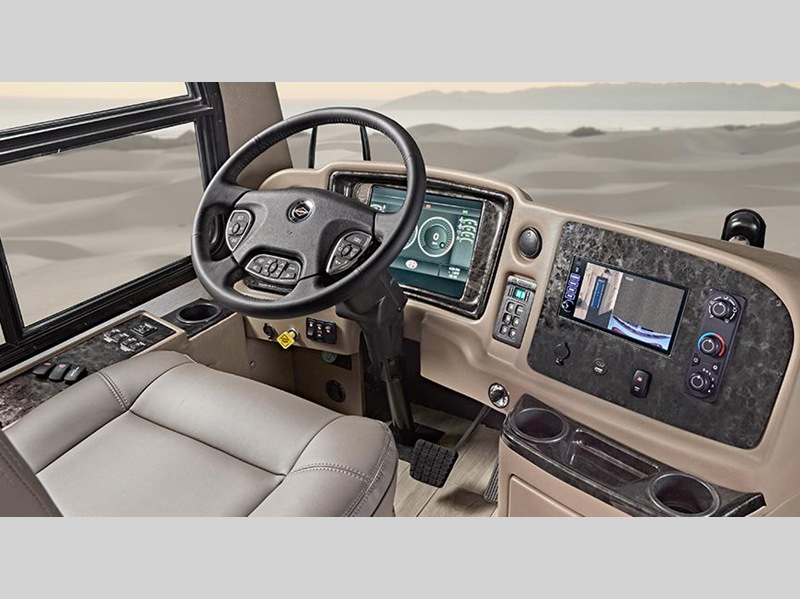

Cockpit
- (2) dual USB ports and (2) 12V socket for charging
- Xite™ 360° camera system that displays on digital dash screen
- Valid 12.3" digital dash with quad core graphics processor with ability to display on-board diagnostics, traditional instrument cluster, 360 degree camera system or Rand McNally™ GPS navigation.
- Power adjustable driver and passenger seats with integrated seatbelt and power foot rests
- Xite™ XSG3 infotainment system with navigation, Bluetooth, Sirius XM and AM/FM tuner
- Power adjustable brake and accelerator pedals
- Powered flush stepwell cover
- Wrapped dash with molded side consoles
- Tilt and telescoping steering wheel with integrated controls for cruise ,wipers, radio controls and Bluetooth phone functionality
- Powered front sun visors and privacy shade
- Ultra-Vision® one-piece wrap-around tinted windshield

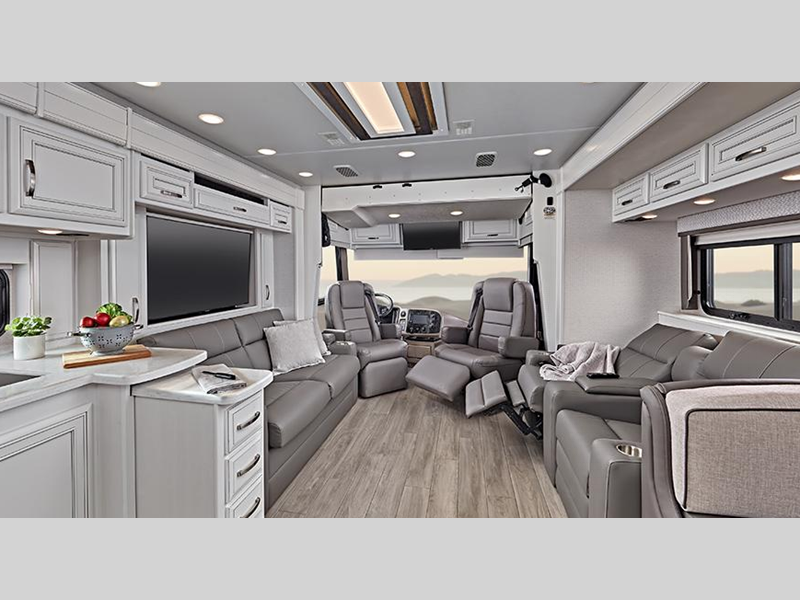

Interior

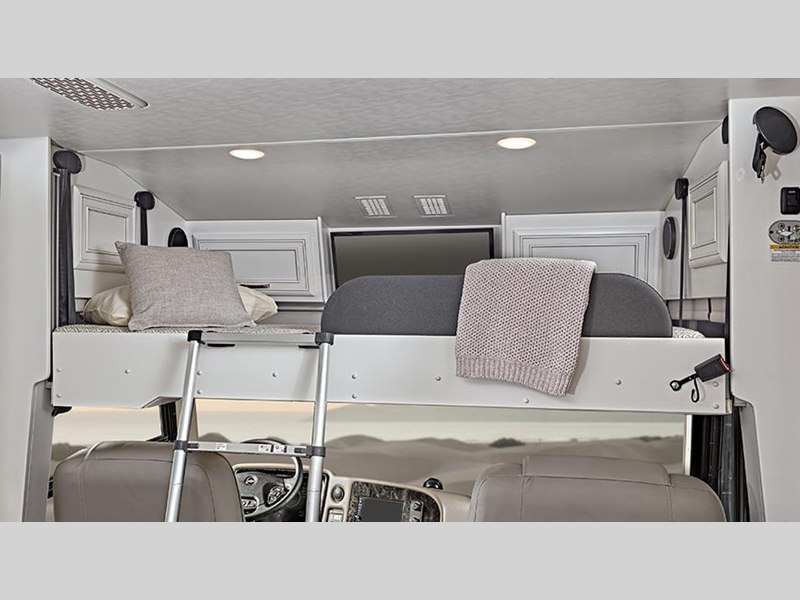

- 300-lb. bunk capacity (39BH only)

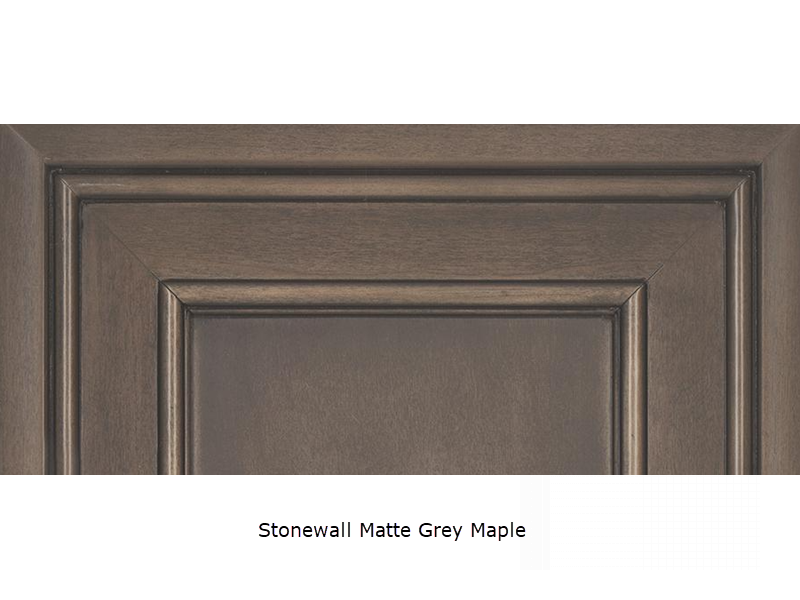

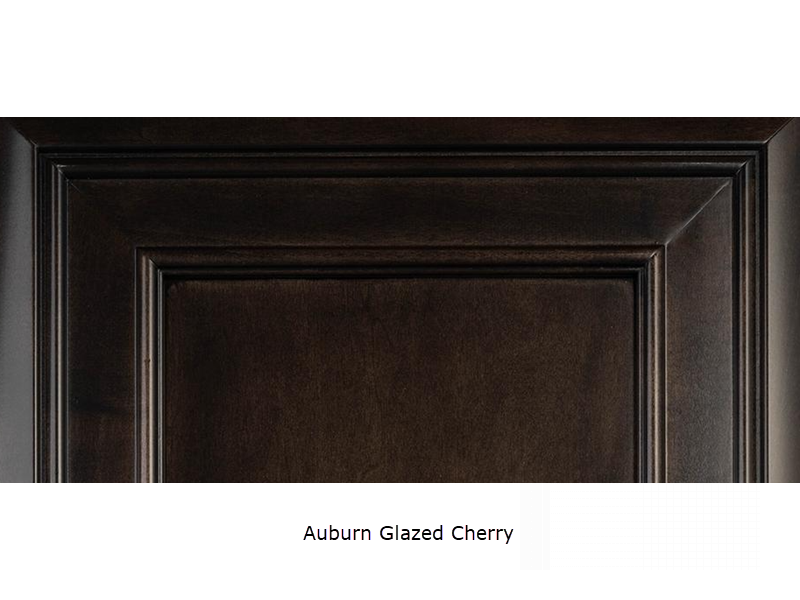

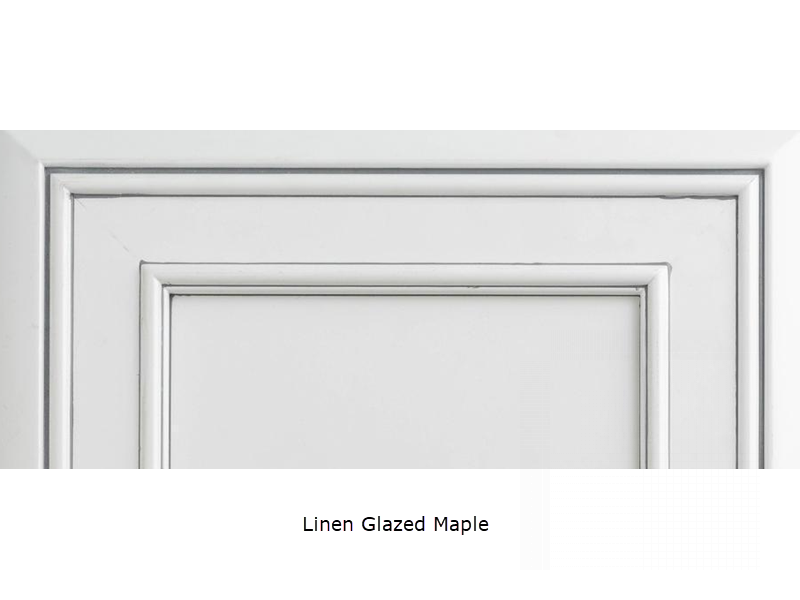

- Handcrafted hardwood cabinetry
- Decorative ceiling feature with integrated accent lighting
- Central vacuum system
- 10” VegaTouch touchpad system for complete integration of coach controls (mobile app available)
- LG® Blu-Ray® player

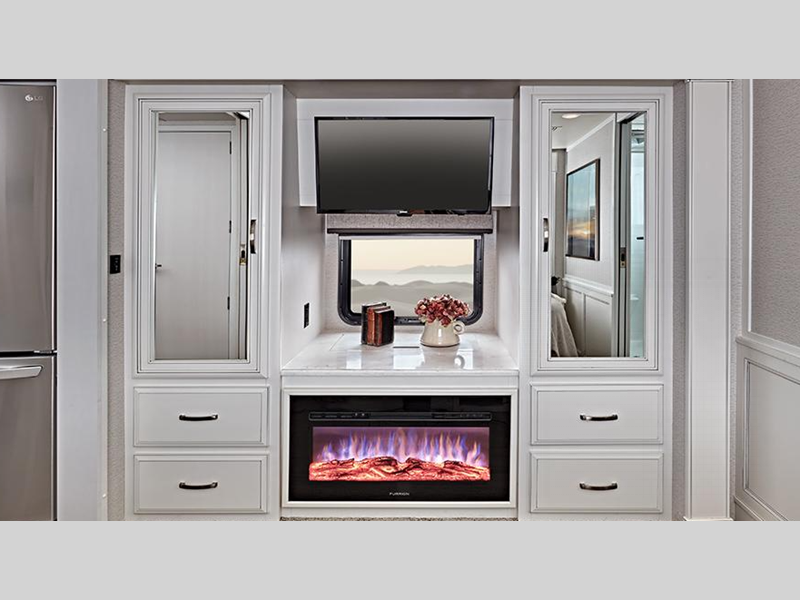

- Electric fireplace (37K only)
- Handcrafted hardwood fascia

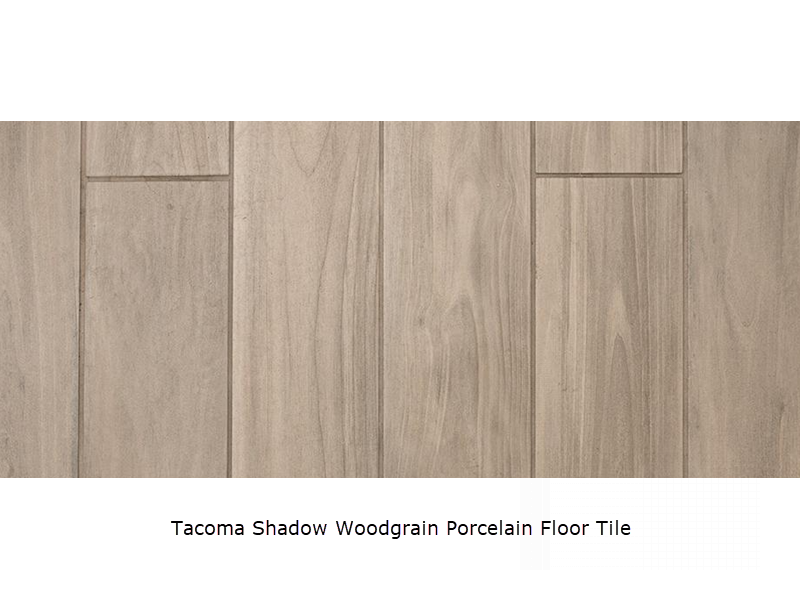

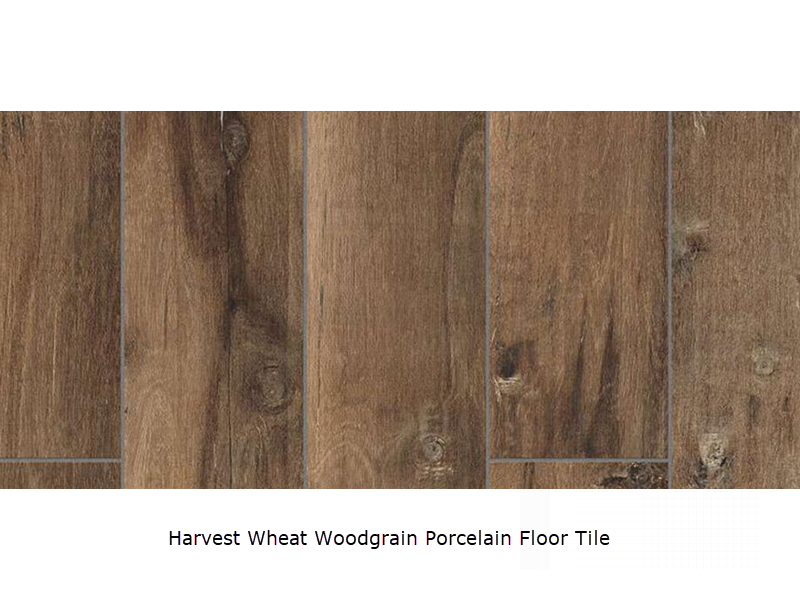

- Hand-laid polished porcelain floor tiles
- Flexsteel® furniture
- Recessed, 12V, LED lighting
- Manual solar day shades and blackout night shades
- 50” Insignia™ LED TV
- Front overhead Insignia 32” LED TV
- Insignia™ sound bar
- Whirlpool® stacked washer and dryer

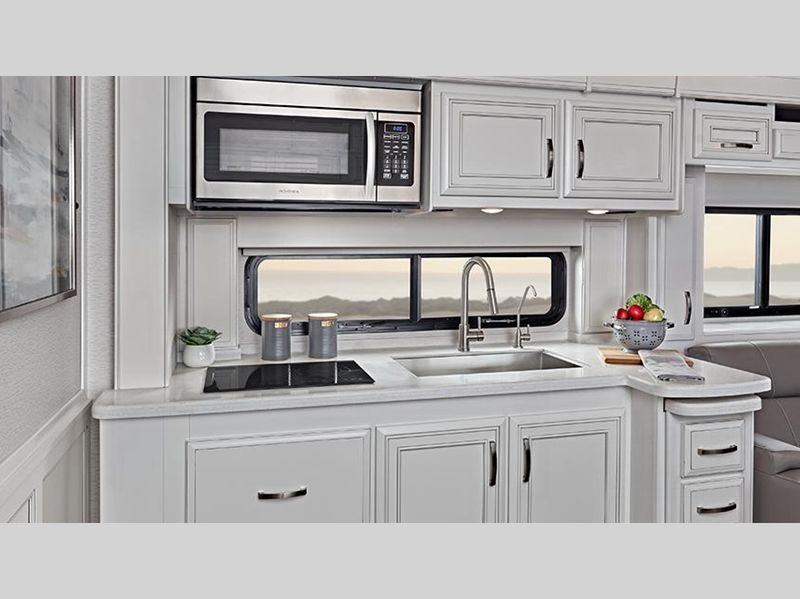

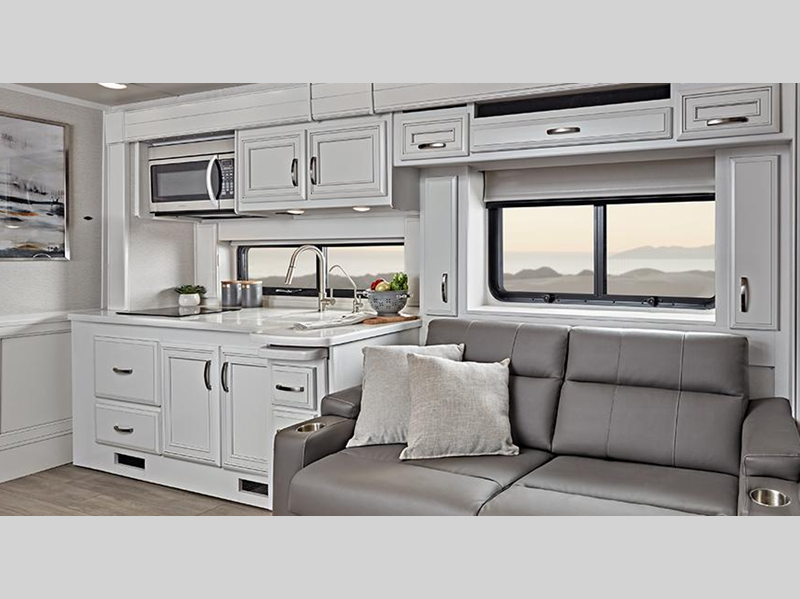

Kitchen
- Induction cooktop
- Solid surface countertops
- 1.5 cu. ft. convection microwave oven
- Whirlpool® stainless steel residential refrigerator with ice maker and water dispenser
- Single-bowl, stainless steel sink
- Slide out storage tray(s) in overhead cabinet
- Fan-Tastic power exhaust fan with intake

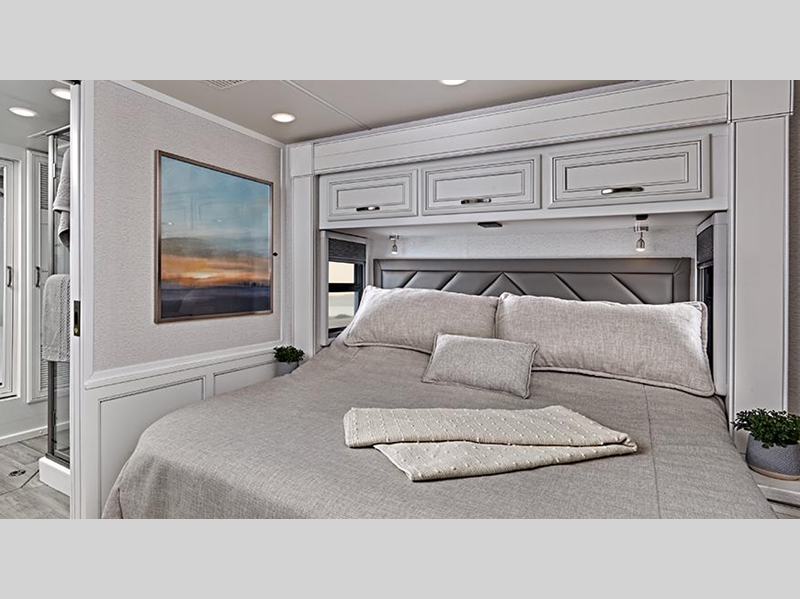

Bedroom

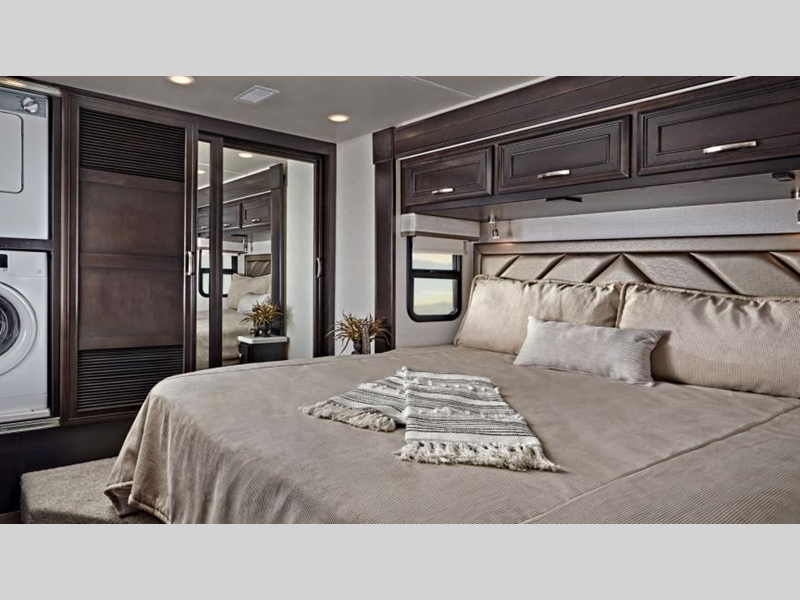

- King size pillow top mattress on tilt bed
- LG® Blu-Ray® player
- Insignia 32" LED TV

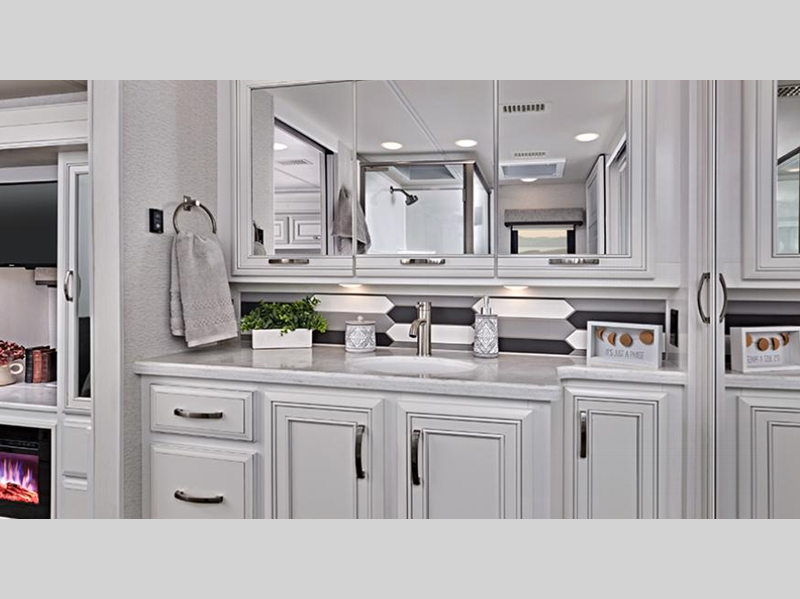

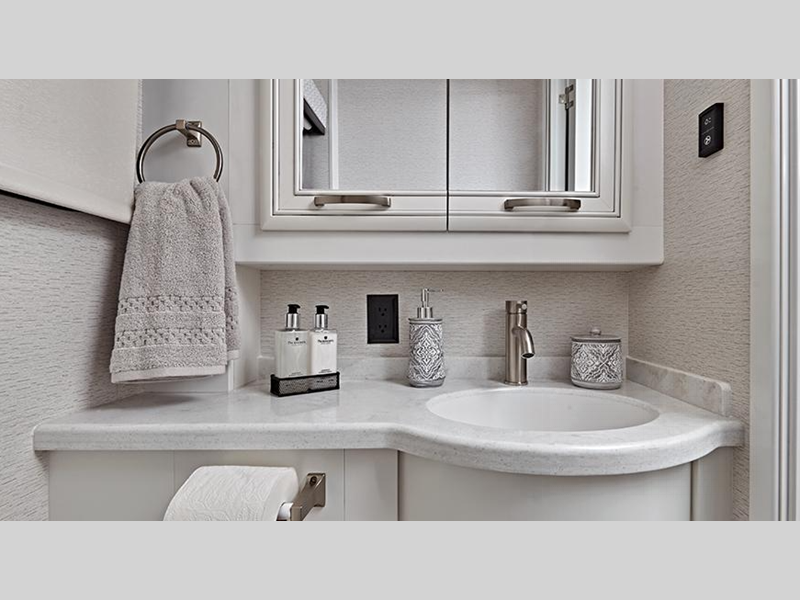

Bathroom
- Solid surface countertops
- One-piece fiberglass shower with skylight
- Fan-Tastic power exhaust fan with intake
- Integrated sink
- Thetford® Aqua Magic toilet with foot flush
- Aqua View Showermiser water saving system
Safety
- Carbon monoxide detector
- Porch light
- Seat belts in every designated seating position
- Safe
- Smoke alarm
Options
- Canadian Standards- CSA
- Customer Value Package (Mandatory)
- 10KW diesel generator, 2,000 watt inverter, (2)15,000 BTU A/Cs with heat pump, automatic leveling jacks, backup and sideview cameras, power awning with LED lights, exterior entertainment center with LED TV, solar shades
- 34" bedroom fireplace
- Winegard In-Motion satellite dome
- Winegard TRAV'LER Dish Network
- Theater seating with power recliners
Please see us for a complete list of features and available options.
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
