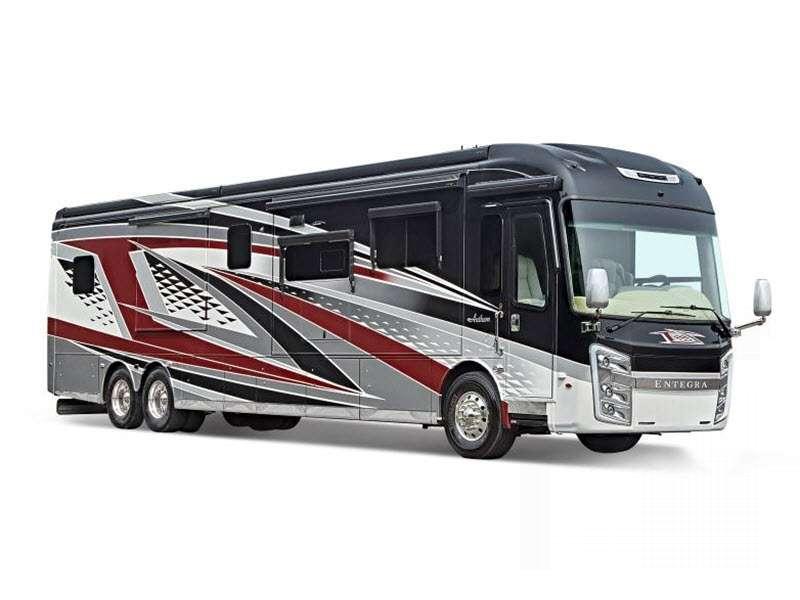

Entegra Coach Anthem Motor Home Class A - Diesel

Previous
Next
1 of 26
Celebrate style and design with the Anthem class A diesel motor coaches from Entegra Coach. These motor coaches give all the luxury and space needed for your active lifestyle with technological advances and interior comfort.

This diesel coach is everything you have been dreaming of along with an accommodating price tag. Each model is equipped with a Spartan K2 raised rail chassis, and a Cummins ISL turbocharged 450hp engine. Knowing your construction and horsepower are taken care of you can concentrate on the luxurious interiors. With kitchens to brag about, which include Whirlpool appliances, a dishwasher, and dimmable LED lit solid surface countertops with stainless steel sink, any cook would feel comfortable making a gourmet dinner or just grabbing a quick snack

The Entegra Coach experience is more than owning an Anthem class A diesel motor home it's an exercise in artisanship. It's time to move up to the Anthem motor coach today!
  • Specifications

    Sleeps 4
    Slides 4
    Length 43 ft 1 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 7 in
    Int Height 7 ft
    Interior Color Ambience, Butterscotch, Majestic, Platinum (Premium Upgrade)
    Exterior Color Gold Ribbon, Rich Chocolate, Victory Blue, Firestorm
    Hitch Weight 15000 lbs
    Gross Weight 49000 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 22.5"
    Generator Onan 12,500 watt diesel
    Fuel Type Diesel
    Engine Cummins ISL
    Chassis Spartan K2
    Horsepower 450 hp
    Fuel Capacity 150 gals
    Wheelbase 296 in
    Available Beds King
    Torque 1250 ft-lb
    Refrigerator Type Residential with ice maker
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight Front 17000 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 12000 lbs
    Water Heater Type Aqua Hot 450 diesel
    AC BTU 45000 btu
    TV Info LR 50", Front 32", BR 32", Ext. 40"
    Awning Info Girard Vision dual pitched
    Washer/Dryer Available Yes
    Gross Combined Weight 64000 lbs
    Electrical Service 50 amp

    Similar Floorplans

  • Specifications

    Sleeps 6
    Slides 4
    Length 43 ft 1 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 9 in
    Int Height 7 ft
    Interior Color Ambience, Butterscotch, Majestic, Platinum (Premium Upgrade)
    Exterior Color Gold Ribbon, Rich Chocolate, Victory Blue, Firestorm
    Hitch Weight 15000 lbs
    Gross Weight 49000 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 22.5"
    Generator Onan 12,500 watt diesel
    Fuel Type Diesel
    Engine Cummins ISL
    Chassis Spartan K2
    Horsepower 450 hp
    Fuel Capacity 150 gals
    Wheelbase 296 in
    Available Beds King
    Torque 1250 ft-lb
    Refrigerator Type Residential with ice maker
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight Front 17000 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 12000 lbs
    Water Heater Type Aqua Hot 450 diesel
    AC BTU 45000 btu
    TV Info LR 48", Front 32", BR 32", Ext. 40"
    Awning Info Girard Vision dual pitched
    Washer/Dryer Available Yes
    Gross Combined Weight 64000 lbs
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Anthem 44A

    Anthem 44A Floorplan Image

    Take a Virtual Tour

    This Anthem 44A diesel motor home by Entegra Coach features a convenient half ... more about Anthem 44A

    Specifications

    Sleeps 6
    Slides 4
    Length 44 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 8 in
    Int Height 7 ft
    Interior Color Ambience, Butterscotch, Majestic, Platinum (Premium Upgrade)
    Exterior Color Gold Ribbon, Rich Chocolate, Victory Blue, Firestorm
    Hitch Weight 15000 lbs
    Gross Weight 49000 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 22.5"
    Generator Onan 12,500 watt diesel
    Fuel Type Diesel
    Engine Cummins ISL
    Chassis Spartan K2
    Horsepower 450 hp
    Fuel Capacity 150 gals
    Wheelbase 320 in
    Available Beds King
    Torque 1250 ft-lb
    Refrigerator Type Residential with ice maker
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight Front 17000 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 12000 lbs
    Water Heater Type Aqua Hot 450 diesel
    AC BTU 45000 btu
    TV Info LR 50" w/ lift, Front 32", BR 32", Ext. 40"
    Awning Info Girard Vision dual pitched
    Washer/Dryer Available Yes
    Gross Combined Weight 64000 lbs
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Specifications

    Sleeps 4
    Slides 4
    Length 44 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 6 in
    Int Height 7 ft
    Interior Color Ambience, Butterscotch, Majestic, Platinum (Premium Upgrade)
    Exterior Color Gold Ribbon, Rich Chocolate, Victory Blue, Firestorm
    Hitch Weight 15000 lbs
    Gross Weight 49000 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 22.5"
    Generator Onan 12,500 watt diesel
    Fuel Type Diesel
    Engine Cummins ISL
    Chassis Spartan K2
    Horsepower 450 hp
    Fuel Capacity 150 gals
    Wheelbase 320 in
    Available Beds King
    Torque 1250 ft-lb
    Refrigerator Type Residential with ice maker
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight Front 17000 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 12000 lbs
    Water Heater Type Aqua Hot 450 diesel
    AC BTU 45000 btu
    TV Info LR 50", Front 32", BR 32", Ext. 40"
    Awning Info Girard Vision dual pitched
    Washer/Dryer Available Yes
    Gross Combined Weight 64000 lbs
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Anthem 44F

    Anthem 44F Floorplan Image

    Take a Virtual Tour

    This Anthem 44F class A diesel motor home by Entegra Coach features a convenient ... more about Anthem 44F

    Specifications

    Sleeps 6
    Slides 4
    Length 44 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 8 in
    Int Height 7 ft
    Interior Color Ambience, Butterscotch, Majestic, Platinum (Premium Upgrade)
    Exterior Color Gold Ribbon, Rich Chocolate, Victory Blue, Firestorm
    Hitch Weight 15000 lbs
    Gross Weight 49000 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 22.5"
    Generator Onan 12,500 watt diesel
    Fuel Type Diesel
    Engine Cummins ISL
    Chassis Spartan K2
    Horsepower 450 hp
    Fuel Capacity 150 gals
    Wheelbase 320 in
    Available Beds King
    Torque 1250 ft-lb
    Refrigerator Type Residential with ice maker
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight Front 17000 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 12000 lbs
    Water Heater Type Aqua Hot 450 diesel
    AC BTU 45000 btu
    TV Info LR 50" w/ lift, Front 32", BR 32", Ext. 40"
    Awning Info Girard Vision dual pitched
    Washer/Dryer Available Yes
    Gross Combined Weight 64000 lbs
    Electrical Service 50 amp

    Similar Floorplans

Anthem Features:

Standard Features (2018)

Chassis
  • Spartan K2 raised rail chassis
  • Cummins ISL turbocharged 450 HP engine 1,250 lb. ft. torque at 1,400 RPM
  • Allison 3000 MH 6-speed transmission
  • 1,000 watt engine block heater
  • Reyco Granning IFS independent front air suspension
  • Reyco Granning rear air suspension
  • Reyco Granning 17,000-lb. front axle with air suspension
  • Rear axle 20,000-lb., tag axle 12,000-lb.
  • 4.88 "Quiet Gear" rear axle ratio
  • 15,000-lb. hitch with 7/4-pin plug
  • Tag axle air dump
  • Hadley air leveling system
  • Side-mounted radiator
  • ABS disc brakes on front and drive axle/drum brakes on tag axle
  • Two-stage engine brake
  • Automatic traction control
  • Bilstein shocks - 60MM front & 46MM rear/tag
  • 150-gal. fuel tank (dual fill)
  • Dual DEF fill 15 gallon
  • Michelin 315/80R 22.5" tires (front) and 295/80R 22.5" tires (rear)
  • 55-degree turning radius
  • Chassis batteries (2) 12 volt
  • 170-amp alternator
  • Remote air connection

Construction

  • X-Bridge frames welded into chassis frame
  • Enclosed, insulated and heated floor and thermostat controlled heating in storage area
  • Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22)
  • 2" x 4" floor truss construction
  • 3/4" 7-ply plywood main floor decking
  • Aluma-Tru Superstructure construction on 12"-16" centers
  • 2-1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coated fiberglass
  • Flush-mounted electric-powered slide out rooms with Vegatouch control
  • One-piece fiberglass roof w/ 3/8" plywood decking and 4" arched aluminum roof truss
  • Steel-reinforced front cap and windshield frame

Heat, AC, Water and Power

  • All electric coach
  • Aqua-Hot 450-LP diesel hydronic water and heating system with in-floor heat throughout
  • 15,000-BTU low profile A/Cs (3) with heat pumps, digital thermostat, and roof to ground condensation drain tubes
  • 50-amp power cord with electric reel
  • Onan 12,500-watt diesel generator with auto gen start on powered slide out tray
  • (2) 3,000 watt pure sine wave inverter
  • L16 AGM batteries (4), (6v/390 amp hrs. ea.)
  • Premium surge protector transfer switch
  • Water hose w/ electric reel
  • Black holding tank sprayer
  • Macerator holding tank dump system w/ manual gate valves
  • 360 Siphon tank vent(s)
  • SeeLevel tank monitoring system
  • City and tank water filtration system
  • Winterizing drain system

Exterior

  • 3M front protective film mask
  • LED high and low beam headlights
  • LED fog lights
  • Daytime running lights
  • LED marker and turn lights the full length of the coach
  • LED docking lights
  • LED accent lights on underside of slide out rooms curbside
  • Pulsing Third Brake Light
  • Lighted grab handle with keypad system
  • Keyless entry with key fob
  • Aire-Secure travel locks for all pocket doors
  • Girard power entrance door awning with LED lights
  • Girard Ultra window shade awning and Ultra slide out awnings
  • Roof mounted Girard Vision dual pitched patio awning with LED lights
  • Chrome, heated, remote control, side-view mirrors with blindspot indicators
  • Frameless, tinted, dual-pane, safety-glass windows
  • Exterior 40" Samsung LED HDTV on TV bracket with extend, tilt and swivel arm and Samsung sound bar
  • Exterior utility center, heated and enclosed with system monitor panel
  • Manual slide out cargo tray
  • Winegard in-motion, dome with prep for Trav'ler satellite dish
  • Winegard Rayzar automatic powered TV antenna
  • Power engine door

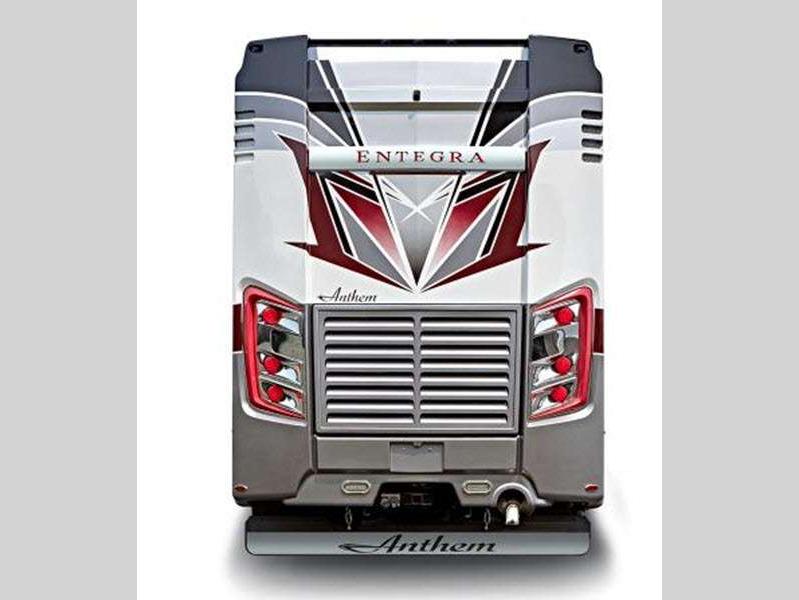

  • Full-width rear mudflap, with chrome "Anthem" nameplate

Cockpit

  • Powered flush stepwell cover
  • Powered front sun visors and privacy shade
  • Ultra-Vision one-piece wrap-around tinted windshield
  • 6-way power, lumbar, Ultraleather driver and passenger seats with integrated 3-point safety belts
  • VIP soft-touch, wood-grain,  leather-wrapped, tilt and telescoping steering wheel w/ integrated controls for radio, cruise, and wipers
  • Spartan Message Center with LCD display featuring: Odometer, Tachometer, Fuel economy, Fuel remaining, Outside air temp., Coolant temp., Engine oil temp. and pressure, Transmission temp., Turbo boost pressure, Air pressure, Trip meter, Speed and voltage
  • All-glass paneled, dual 9" capacitive touchscreen in-dash infotainment center with Rand McNally RV navigation, Bluetooth, Sirius XM, AM/FM  tuner, integrated camera control, House Mode whole coach audio distribution, and integrated VegaTouch coach control
  • JBL premium audio sound system with speakers, amplifier, and subwoofer
  • Automatic hydraulic leveling jack system
  • Battery boost system
  • Powered adjustable foot pedals
  • Color, high definition digital side and rearview cameras
  • Chrome, LED lit cupholders and three USB ports

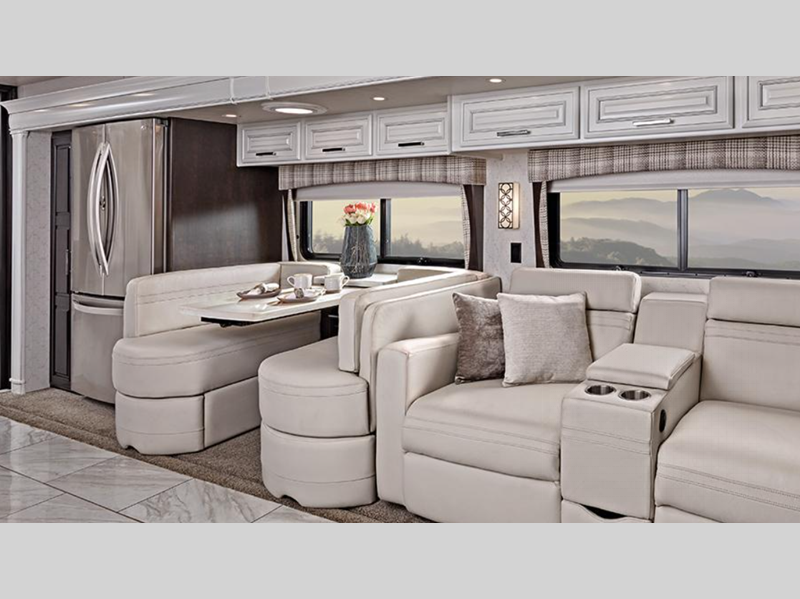

Interior
  • Vegatouch pad system, for complete integration of coach controls
  • LED recessed 12V lighting
  • High-gloss 12" x 24" porcelain tile floor
  • Powered solar day and black out night shades
  • Samsung 50" 4K UHDTV (42DEQ, 44B, 44A)/ Samsung 48" 4K UHDTV (44F, 42RBQ)
  • Samsung 32" LED HDTV in front overhead
  • Samsung 32" LED HDTV in bedroom
  • Bose SoundTouch 300 sound system in living area
  • Samsung sound bar in bedroom
  • Blu-ray players in living area & bedroom
  • Ultraleather hide-a-bed(s)
  • Stacked washer and dryer
  • Central vacuum system
  • In-step storage with pull-out tray
  • LED lit 1,400 watt electric fireplace standard (42DEQ, 42RBQ, 44B) Optional with desk and TV lift option (44A)

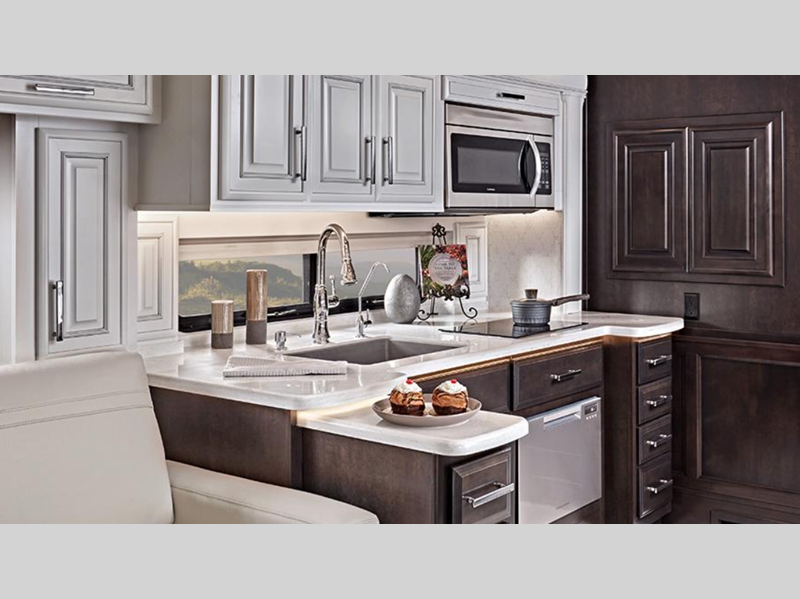

Kitchen
  • Dimmable LED lit solid surface countertops with stainless steel sink
  • Pullout countertop extension with drawers
  • Porcelain tile backsplash with glass design inlays
  • Cutting board
  • Silverware drawer
  • Large deep drawer with waste basket
  • Dishwasher with wood raised panel door front
  • RV Chef Collection Furrion nduction cooktop
  • Whirlpool Gold 1.9 cu. ft. convection microwave oven
  • Whirlpool residential refrigerator with ice maker and water dispenser

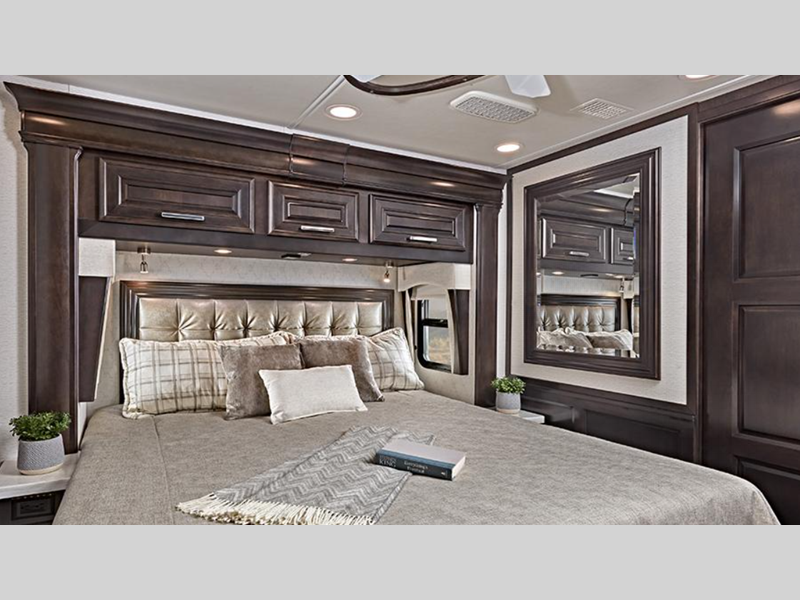

Bedroom

  • Select Comfort Sleep Number king size mattress
  • Ceiling fan
  • Spacious cedar-lined wardrobe with automatic lights

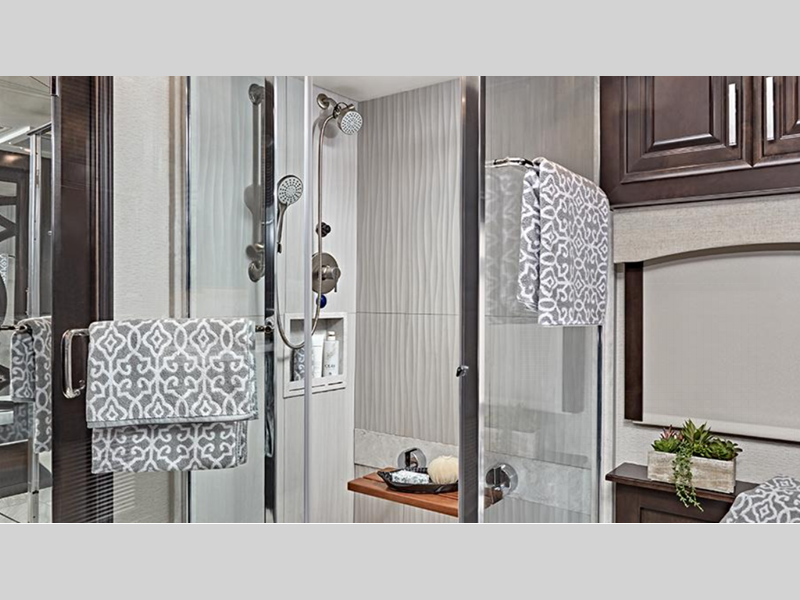

Bathroom

  • LED lit solid surface countertops with integrated sink
  • Porcelain toilet(s) with push button flush
  • Clear glass shower door
  • Porcelain tiled shower walls with skylight
  • Power vent
Safety
  • En-telligent Blind Spot Monitoring System, tuned to detect objects within the lane of traffic on either side of the vehicle
  • Security system with glass shatter sensors
  • Motion sensor security lights (2)
  • Smoke alarm
  • Carbon monoxide detector
  • Security safe
Options
  • Canadian standards
  • LED lit 1,400 watt electric fireplace - Optional with desk and TV lift option (44A)
  • Dinette Option 1: Ultra leather dinette booth (42DEQ, 44A, 44B, and 44F)
  • Dinette Option 2: Dinette with ultra leather sofa ensemble and hide-a-bed (42RBQ)
  • Option 1: Freestanding table and chairs (42DEQ, 44A, 44B, and 44F)
  • Option 2: Free-standing table with 4 chairs, hide-a-bed, and 82" sofa (42RBQ)
  • Theater seating with 3 power recliners and fixed center console
  • Desk with TV lift, fireplace, and hide-a-bed (44A)
  • Winegard Trav'ler satellite dish - DIRECTV
  • Winegard Trav'ler satellite dish - Shaw Direct
  • Solar panels (Dual-100 watt) with Morningstar SunSaver Duo solar panel charge controller
  • 2.8 cu. ft. exterior freezer
  • WiFi Extender Antenna

See us for a complete list of features and available options!


All features and specifications are subject to change.

Manu-Facts:

About Entegra Coach

In the spring of 2008, Entegra Coach became a member of the Jayco family of companies. Jayco is the world's largest privately-held manufacturer of recreational vehicles, and we are proud to take our place as the builder of the company's flagship products. Entegra Coach manufactures and markets luxury Class A motor coaches. The hallmarks of our products are structural integrity, exceptional quality, old-world craftsmanship and excellent after-market service. We build each coach one at a time, and we back our products with a commitment to customer service that is unmatched in the RV industry. We are owned and operated by people who know and understand RVs. You can be rest assured that when you invest in a product from Entegra Coach, you will join a family that has an abiding commitment to quality and service.

Top 5 Reasons to buy an Entegra Coach

1. 2-YEAR WARRANTY Our family is proud to stand behind every Entegra Coach we build. That’s why we back our motor coaches with a manufacturer’s limited warranty, warranted to the original purchaser for two years (five years structural) from the original date of purchase or 24,000 miles of use, whichever comes first, against defects in materials and workmanship.

2. 3-YEAR PLATINUM-LEVEL ROADSIDE ASSISTANCE Travel worry-free in your motor coach with the Entegra Coach Customer First Roadside Assistance program, yours at no cost during the first three years of ownership.

3. RESIDENTIAL AMENITIES, like distressed leather chairs, decorative hardwood crown molding, pillowtop mattresses, solid surface countertops and LCD HDTVs, are just a few of the luxurious touches that make you forget you are in a motor coach.

4. RIGID CONSTRUCTION keeps us on the road for the long haul. Seamlessly engineered, flawlessly designed, Entegra Coach’s exclusive X-Bridge chassis helps prevent flexing throughout, averting cracks in tile and grout and reducing windshield movement and noise.

5. FAMILY OWNED by the Bontrager family, Entegra Coach is built on values instilled 40 years ago. Our motor coaches capture everything we stand for, from structural quality and old-world craftsmanship, to unmatched customer service.
